CL 300™
Thermally Isolated Adjustable
Cladding Support System
Rainscreen & ci Applications
CL 300 is a thermally isolated adjustable cladding support system that can bear the weight of any cladding material and it uniquely integrates the horizontal and vertical tracks for attachment on the same plane, making it easier and faster to install.
Components
All Cladding Materials
- One Product Design
- Integrates with All Cladding Materials & Weights
- Terracotta, Stone, Brick, Ceramic, Fiber Cement,ACM, Composite, Zinc +++
- Gravity Load: 61 lb/sq. ft.
Thermally Isolated
High-performance system for exterior use.
Colors Available
Aluminum Mill
(Standard)
Black Anodized
(Custom)
Level & Plumb
- Level and Plumb on the Exterior Plane
- No Shims at the Substrate
- Less Potential Damage to the Membrane
- One Adjustment – Insulation Depth + Plumb/Level
- Steel Stud or Slab – Quickly Resolve In-field Imperfections
Finishing Accessories
Window, Door, Edge Termination
Creative Corner Designs
One Complete System that Does it All
High Thermal Performance
Third-party tested – 91% thermal efficiency. Efficient thermal break achieved with polyamide clips. LEED Design Credits: Energy & Atmosphere + Materials & Resources, +
Integrates with all Cladding Materials
Terracotta, Stone, Brick, Ceramic, Fiber Cement, ACM, Composite, Zinc, +
Universal Installation
Horizontal AND/OR Vertical.
Optional Horizontal Flush-mounts
Horizontal and vertical attachment layers imbed as an integrated solution for multi-point affixing of panels on the same plane. Minimizes extension of the cladding from the substrate.
Accuracy to Design
Integrated install measurements, leveling and minute adjusting capability.
Finishing Accessories
Address termination points for corners, windows & doors. Corners can be properly supported - including a wide range of acute and obtuse angles.
Insulation Accommodation
Accommodates up to 8” of insulation.
Aluminum & Polyamide Components
Lightweight and strong extruded aluminum Base-Track, T-Track, Flush-Mount Polyamide THERMAClip™ – strong material provides the thermal break
Customization
Custom track lengths and system depths available.
Track Colors
AluminumMill - Silver (Standard)BlackAnodized (Custom)
Global Responsibility
High Thermal Performance
Third-party thermal analysis by Morrison Hershfield
- Results @ 91% thermal efficiency.
- Thermal break achieved with polyamide clips.
LEED Building Design
The CL 300 cladding support system is an environmentally responsible product that provides high-performance thermal isolation required for effective continuous insulation design.
LEED Credits
Energy & Atmosphere
- Exceeds ANSI/ASHRAE/IESNA Standard 90.1–2010 by eliminating any conductive fastener penetration of the insulation.
Materials & Resources
- Aluminum elements have 30.5% post-consumer recycled content and may be valued at 85% of the cost of those elements in calculating the credit.
View the LEED Brochure for specific details.
Up to the Challenge
Rigorously Tested to Meet Challenging Conditions
All CL-TALON products are made with 100% aluminum alloy which is less corrosive than powder coated or heavier steel alternatives and can therefore extend the life of the façade, especially in high moisture or saline rich environments.
Third-party Fire, Water, Air, Structural & Gravity testing includes: NFPA 285, ASTM E331, ASTM E330, ASTM E283.
View our Technical Information for more details.
Quick, Safe, Easy to Install.
Why Contractors Love Our Products
- Pre-marked measurements etched into the face of Base Track.
- Lessens shimming needed at the substrate – less time and potential damage to the membrane.
- Greater depth and finite adjustments than other systems.
- THERMAClip™ slides into the 10 ft Base Track saving time versus plumbing and leveling individual clips over a large space.
- Optional pre-installed clip in location on the Base Track.
- Aluminum material is strong and lightweight.
SLOTTED-Z®
SLOTTED-Z combines known industry practices with advancements in both thermal performance and insulation securement that will save energy and labor costs.
SLOTTED-Z® with ROCKETStick®
Z-Girt with Insulation Securement
- Advancement in thermal performance
- Secure insulation faster than ever before using the insulation securement slots and ROCKETStick®.
- Fiberglass z-girt with aluminum ROCKETStick.
%20(1)%20(1).jpg)
ROCKETStick™
Secure Insulation in One Shot.
FAST. EASY. SECURE.
- Integrates with all SLOTTED-Z™ cladding attachment systems.
- Secures insulation away from the waterproofing layer.
- Compatible with semi-rigid or rigid insulation.
- Quick and easy to install.
SLOTTED-Z™
Secure Insulation in One Shot
Secure insulation while creating Air Space with optional ROCKETStick installation method
.jpg)
Smart. Simple. SLOTTED-Z®
Increasing Thermal Performance
- Fiberglass has a low thermal conductivity so temperatures outside the building are not easily transferred to the interior.
SLOTTED-Z® FG (Fiberglass)
Air & Moisture Ventilation
Our SLOTTED-Z® Fiberglass Girt provides added Air & Moisture Ventilation which facilitates the purposeful regulation of moisture content. This reduces the risk of water damage, rot, and mold.
- Optional ROCKETStick® insulation securement for thermal control with Air Space
- Slots / Weep Holes included
- Reduced installation time and compatible with all Cladding materials that utilize Z-Girts
Thermal Performance of Building Materials
Thermal Conductivity and Cladding Support Systems
- Thermal conductivity refers to the ability of a given material to conduct/transfer heat.
- Common building materials can have vastly different rates of thermal conductivity.
- Fiberglass has a low thermal conductivity so temperatures outside the building are not easily transferred to the interior.
- The use of materials such as fiberglass therefore improve the thermal efficiency of the wall system when used as a thermal break – separating two more conductive elements of the wall system that can more easily transfer heat from the outside of the building to the inside (or vice versa).

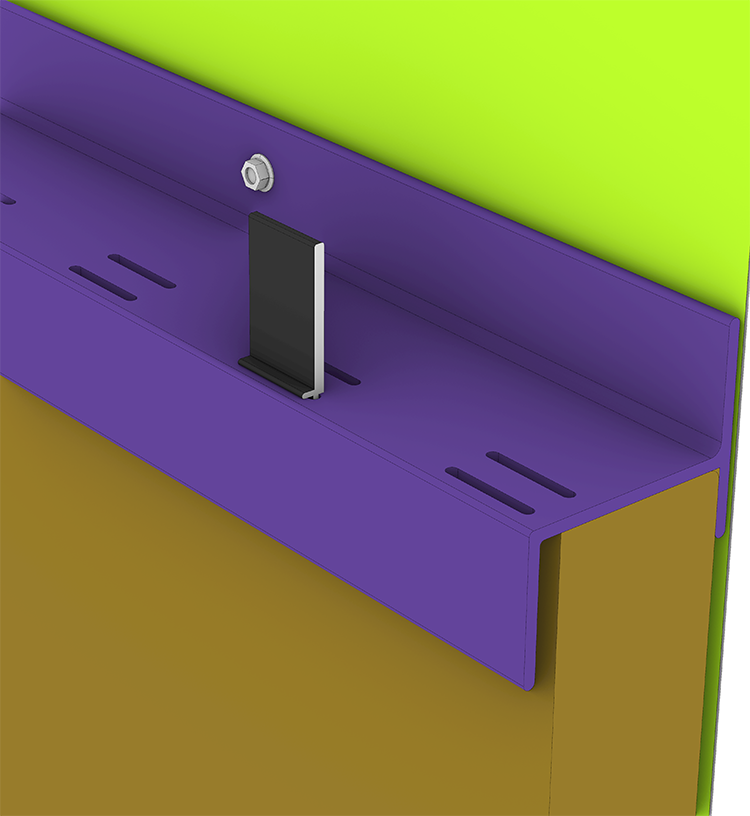

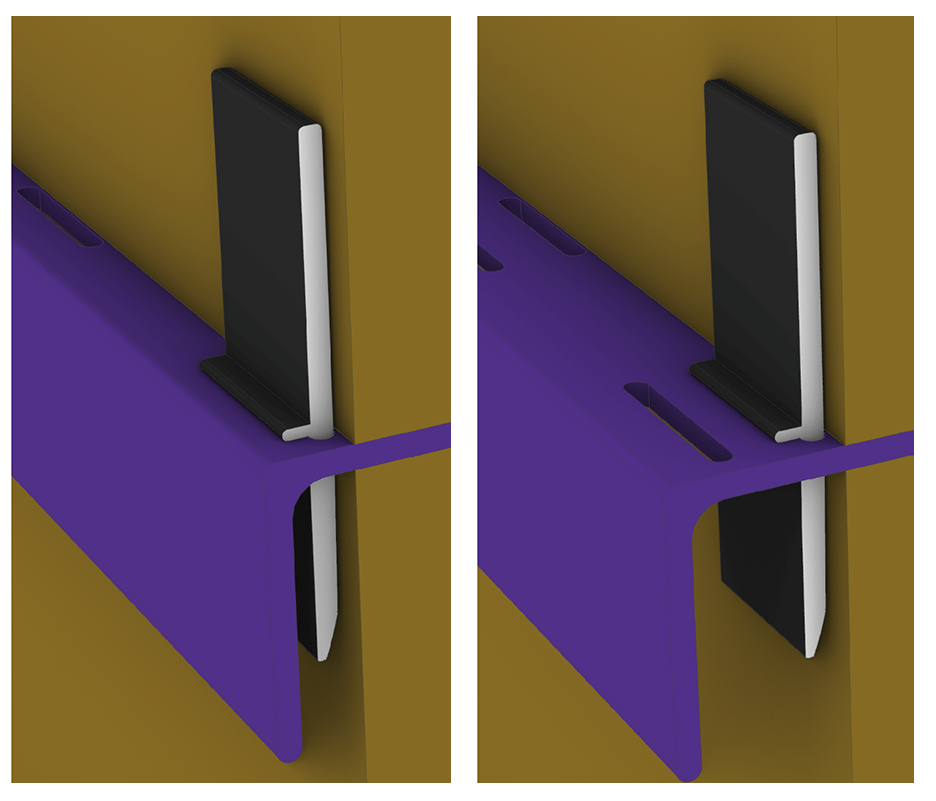

ROCKETStick®
Secure Insulation in One Shot
ROCKETStick® is an optional component that integrates with all SLOTTED-Z® cladding attachment systems to secure insulation away from the waterproofing layer. The sculpted “peg & slot” insertion process makes installation quick and easy. Compatible with semi-rigid or rigid mineral wool and foam board insulation.
Two adjustment positions at 1/2” increments from the outer face.
Simple Design. Fast.Easy. Secure

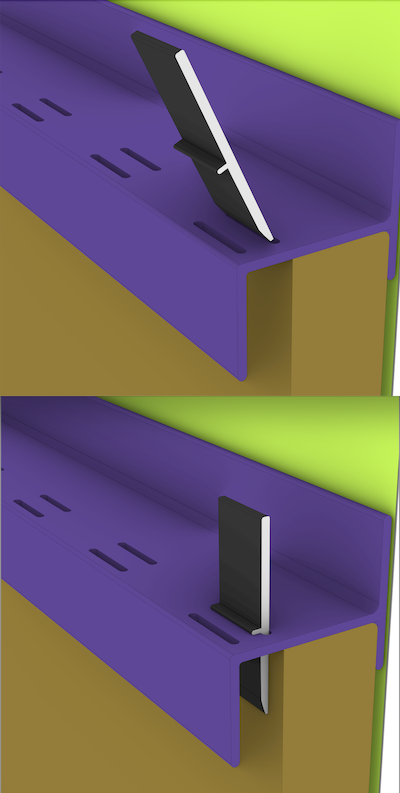

- The tapered end of the ROCKETStick slides easily into the 1” wide slot of the SLOTTED-Z.
- Installs 1.5” above and 1” below the surface.
- Material: Aluminum.
✓ ROCKETStick (Peg & Slot)
- Quick and easy.
- Secures insulation away from the waterproofing layer.
- No power tools required.
Choosing the Right Profile to Match Your Design Requirements

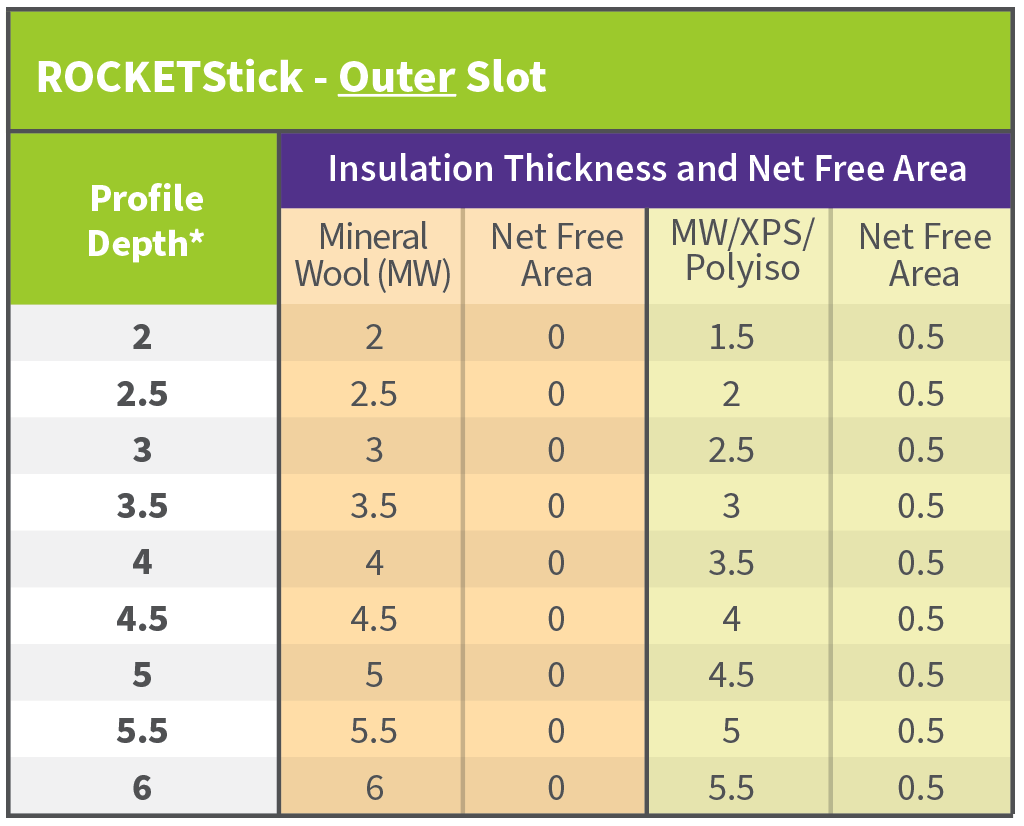

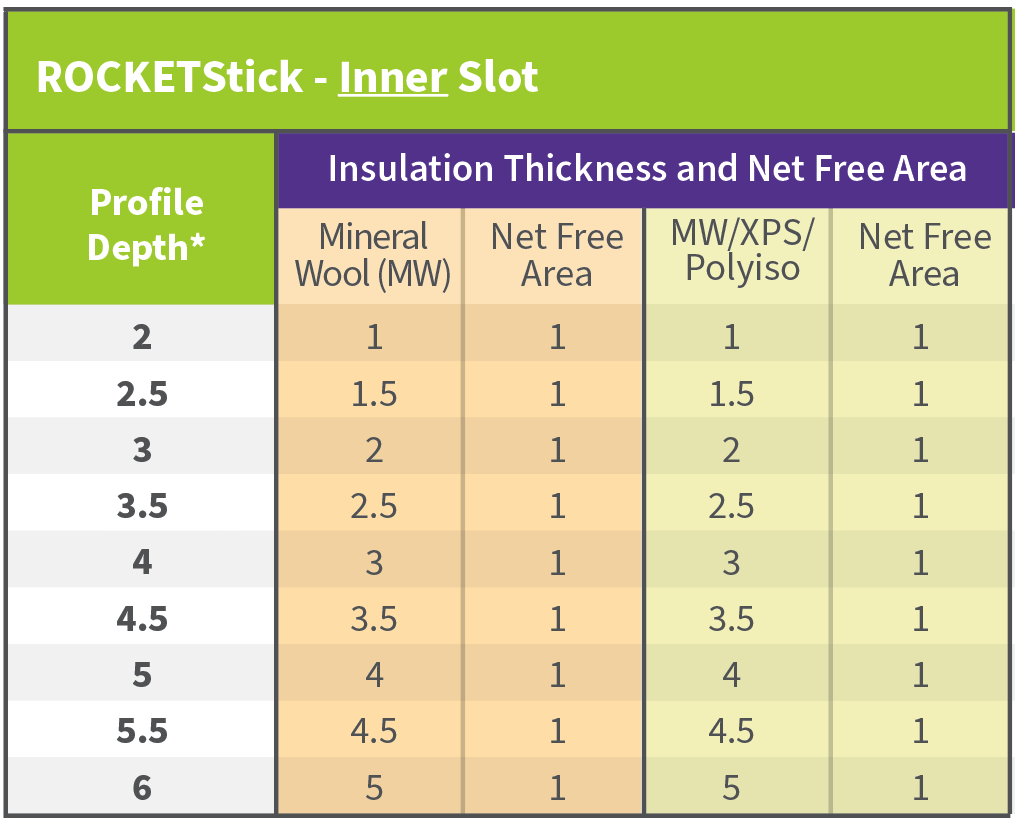

The two charts below indicate the adjustment options for installing different types of semi-rigid or rigid board insulation materials using the ROCKETStick® and how that influences the net free area outbound from the insulation layer.
* Nominal depth of the z-girt profile Dimensions are in inches

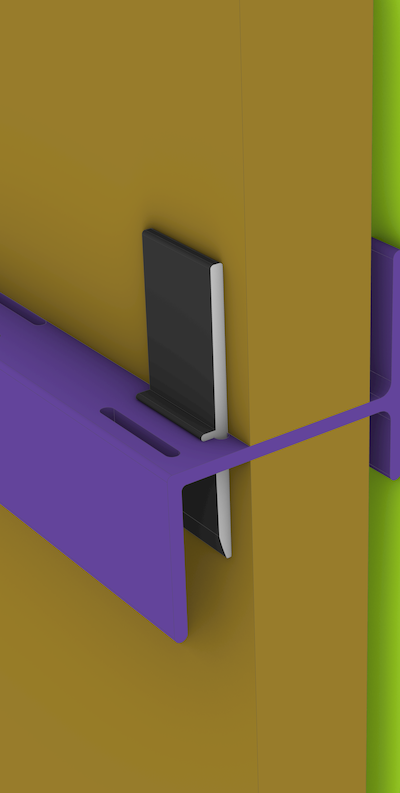

SLOTTED-Z and Mineral Wool Insulation
- Mineral Wool insulation form fits around the girt at the substrate and if using the ROCKETStick, allows for an additional ½” of insulation to be installed, versus foam board insulation.

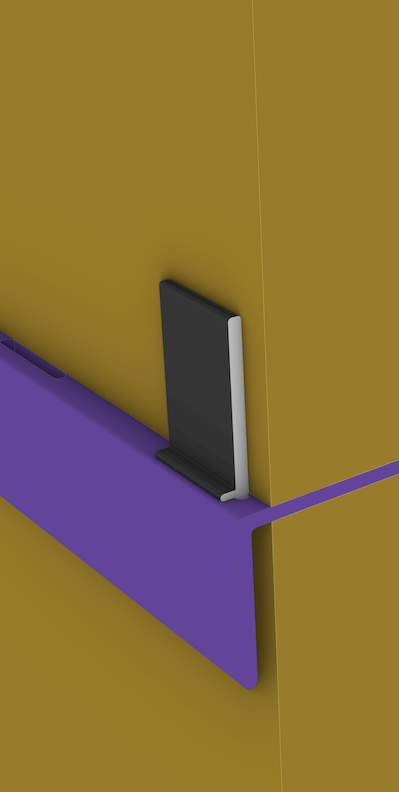

SLOTTED-Z and Foam Board Insulation
- Foam insulation rests on top of the flange at the substrate and secured at the front by the ROCKETStick.

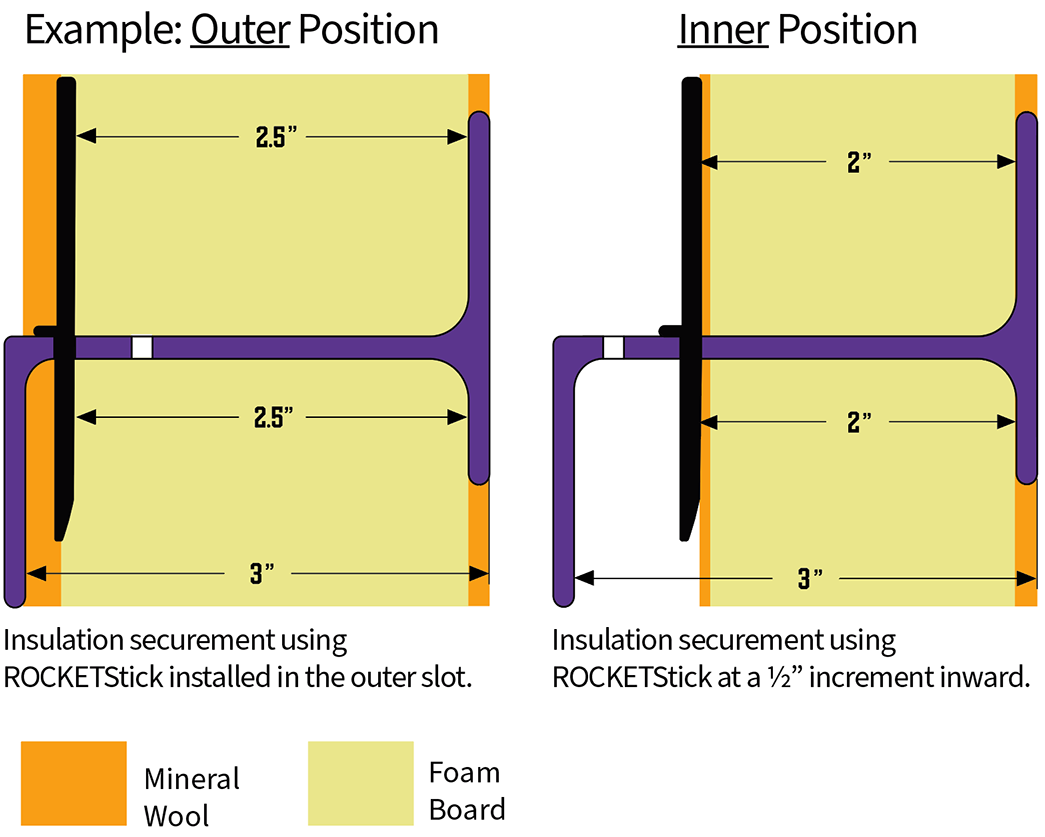

Insulation Securement in Plan View
- Mineral Wool compresses with the insertion of the
ROCKETStick in the outer securement slot. - Both Mineral Wool and Foam board insulation secured with ROCKETStick in the inner slot.
Allows for greater airflow in the net free area
for rainscreen systems as needed.
Slotted-Z® Installation
Our Slotted-Z® Fiberglass Girt was designed to be installer friendly while simultaneously providing thermal efficiency and continuous insulation.
- Adjustable clip & rail systems with coplanar flush-mounting multi-point panel attachment.
- Fiberglass Z-girts with optional insulation securement.
- High thermal performance.
ECO-Z™
Thermally Isolated Z-Girts

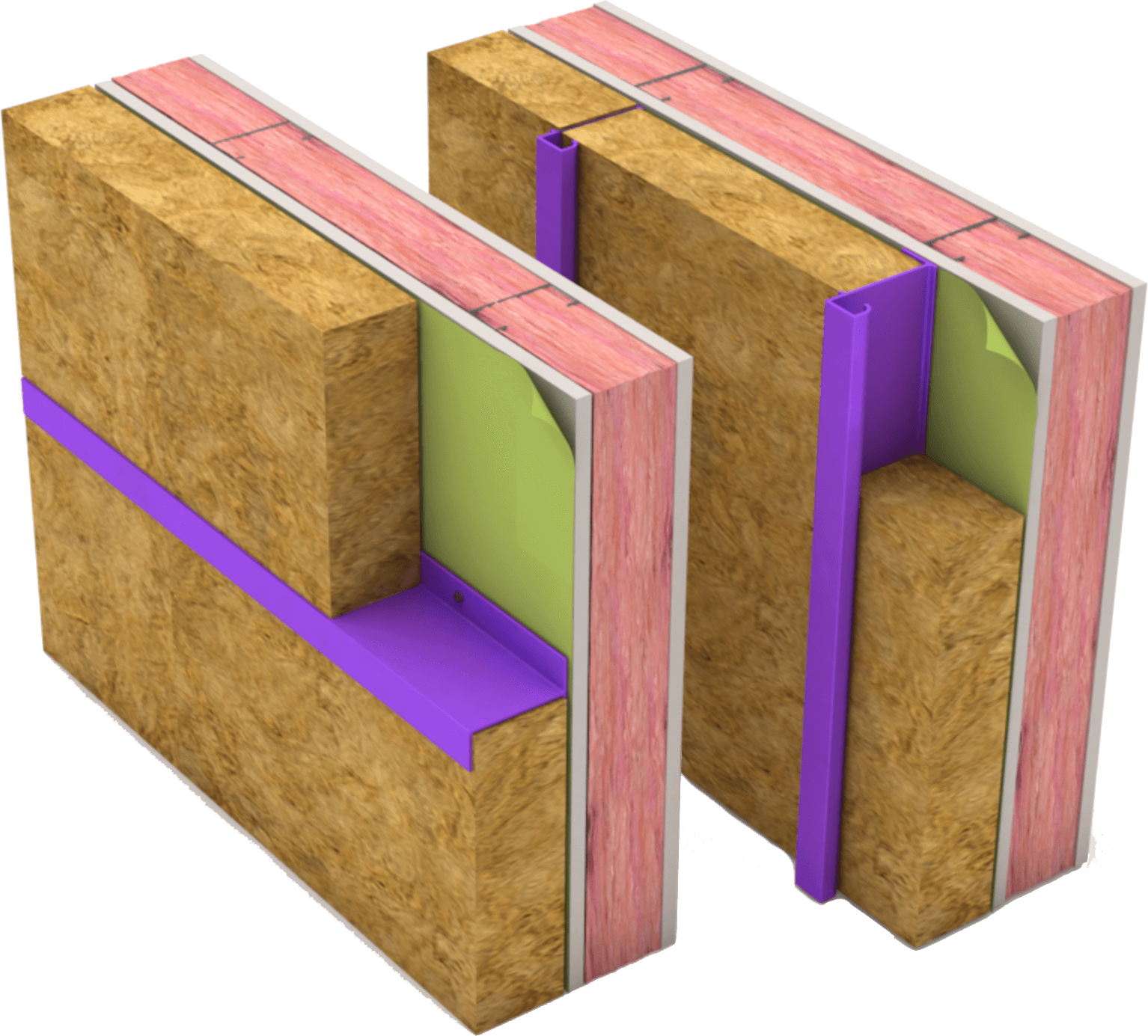

ECO-Z products offer better thermal performance than traditional z-girt panel support systems and are designed to provide robust structural performance.
ECO-Z™ 100
.png)
ECO-Z™ 200
.png)
Increasing Thermal Performance
Fiberglass has a low thermal conductivity so temperatures outside the building are not easily transferred to the interior.
Color Finishes
.png)
Purple
(standard)
Black
(custom)
ECO-Z™ 100
Improved design for greater structural performance.
Profile
.png)
ECO-Z™ 200
Profile allows 1” ventilation behind the panel when attaching direct to the girt for rainscreen applications.
Profile
.png)
Product Details
ECO-Z™ 100
Product Range
Profile Depths Available
1.5‘’ - 6‘’
(½”increments)
ECO-Z™ 200
Product Range
- Insulation Depth: 1.5” – 6” (½”increments)
- Ventilation Depth: 1” (all profiles)
- Total Profile Depths: 2.5” – 7” (½”increments)
- Standard Length: 10 ft. (custom sizes available)
VENTED-ZTM
Ventilated Rainscreen Girt +
VENTED-Z is a uniquely designed girt system specifically for rainscreen applications. The exterior face presses back against the insulation to provide 1” of ventilation out to the façade. Compatible with all types of insulation.
Features
- Ventilated rainscreen system
- Girts designed to provide 1'' airflow outside the insulation layer.
- Additional slots for ventilation and optional insulation attachment.
Available in:
- Fiberglass for greater thermal performance.
- Aluminum for greater strength.
VENTED-ZTM Profile
Moisture Management
- Slotted holes - designed to divert moisture buildup on surfaces.
- Promotes drying so the system can perform to the intended thermal specification.
Ventilation
Both Aluminum and Fiberglass VENTED-Z profiles are:
- Designed with 20% airflow in the 1'' net free area between the insulation and face of the VENTED-Z.
- Net Free Area ventilation holes may also restrict pests from entering the cavity.
VENTED-Z™ FG (Fiberglass)
Increasing Thermal Performance
- Fiberglass is a low thermally conductive material so temperatures outside the building are not easily transferred to the interior.
- Less expansion and contraction than traditional steel girts. (1.5 x less)
VENTED-Z™ AL (Aluminum)
Increasing Structural Performance
- Aluminum is lightweight and strong.
- 100% recyclable.
- Thermally isolated THERMAShim™ provides increased thermal performance (optional)
Product Details
VENTED-Z™ FG (Fiberglass)
Product Range
- Insulation Depth: 1.5” – 6” (½”increments)
- Ventilation Depth: 1” (all profiles)
- Total Profile Depths: 2.5” – 7” (½”increments)
- Standard Length: 10 ft. (custom sizes available)
VENTED-Z FG Profile Specifications
VENTED-Z™ FG (Fiberglass)
Colors Available
Purple
(Standard)
Black
(Custom)
VENTED-Z™ AL (Aluminum)
Product Range
- Insulation Depth: 1.5” – 6” (½”increments), 7'', 8''
- Ventilation Depth: 1” (all profiles)
- Total Profile Depths: 2.5” – 9” (insulation + ventilation)
- Standard Length: 10 ft. (custom sizes available)
VENTED-Z FG Profile Specifications
VENTED-Z™ AL (Aluminum)
Colors Available
Aluminum Mill
(Standard)
Black Anodized
(Custom)
ROCKETStickTM
Secure Insulation in One Shot
ROCKETStick™ is an optional component that integrates with all VENTED-Z cladding attachment systems to secure insulation away from the waterproofing layer. The sculpted peg & slot insertion process makes installation quick and easy. Compatible with semi-ridged and ridged insulation.
SIMPLE DESIGN
FAST. EASY. SECURE.
- The Tapered end of the ROCKETStick slides easily into the 1” slot of the VENTED-Z.
- Installs 1.5” above and 1” below the surface.
- Material: Aluminum Mill
ADJUSTABLE
Insulation Thickness Adjustment
- Simply insert the ROCKETStick in the appropriate slot to match the insulation thickness.
- Adjusts in ½” increments, starting at 1.5” from the inner top flange of the VENTED-Z.
INSULATION TYPES
- Mineral Wool (semi-rigid or rigid)
- Foam Board (e.g. XPS, ISO)
SIMPLE DESIGN
FAST. EASY. SECURE.
- Insert tapered end into the 1” slot of the VENTED-Z.
- Installs 1.5” above the surface and 1”below.
- Material: Aluminum Mill
ADJUSTABLE
Insulation Thickness Adjustment
- Simply insert the ROCKETStick in the appropriate slot to match the insulation thickness.
- Adjusts in ½” increments, starting at 1.5”from the inner flange of the VENTED-Z.
INSULATION TYPES
- Compatible with semi-rigid or rigid board insulation.
- Mineral Wool
- Foam Board
FlatTRACK™
Multi-purpose Cladding Support System
- Interior & Exterior Applications
- Integrated Flush-Mount Design
- Wide Profiles for Panel Attachment
INTERIOR
EXTERIOR
All Cladding Materials
Terracotta, Stone, Brick, Ceramic, Fiber Cement, HPL/Composite, ACM, Composite, Zinc, +
FlatTRACK™ 100 & 110
Flush-Mount Design
Independent Flush-Mounts integrate with the vertical Base Track providing:
- Multiple fixing points on the same plane alleviates the need to connect the panel edges back into the depth of the system
- Overall reduction in the depth of the wall assembly
- Flexibility to place supports only where they are needed making this system ideal for even the most complex designs
*Flush-Mount is an optional component.
Track Finishes
Aluminum Mill
(standard)
Black Anodized
(custom)
FlatTRACK™ 100
- Strong lightweight system for shallow system configurations at ½” profile depth
- Wide integrated profiles for seamless panel attachment
- Optional pre-fitted Flush-Mount for 16” o.c. configurations or shallow hat profile for all other design requirements
- Flush-Mount surface 3” or 6”
FlatTRACK™ 110
- Strong lightweight system for shallow system configurations at 1” profile depth
- Wide 2” Base Track and 3” Flush-mounting surfaces for panel attachment
- Standard 10’ Flush-mounting profiles can be pre-cut to desired lengths to meet engineered spacing requirements (optional)
FlatTRACK™ 110
- Strong lightweight system for shallow system configurations at 1” profile depth
- Wide 2” Base Track and 3” Flush-mounting surfaces for panel attachment
- Standard 10’ Flush-mounting profiles can be pre-cut to desired lengths to meet engineered spacing requirements (optional)
All rights reserved. Allied Specialty Group Inc. © 2021
3114 Tonnelle Ave, North Bergen, NJ 07047
All rights reserved. Allied Specialty Group Inc. © 2021
